The Universal dividing head(index Center) has been designed to carry out all types of gear cutting.Precision dividing and spiral word with greater precision and efficiency than before:The center face can adjust from elevation 90 to depression 10,lt suits for' high standard inspection and test,In order to satisfied customers,the worm gear redio is designed for 1:40.
Choose

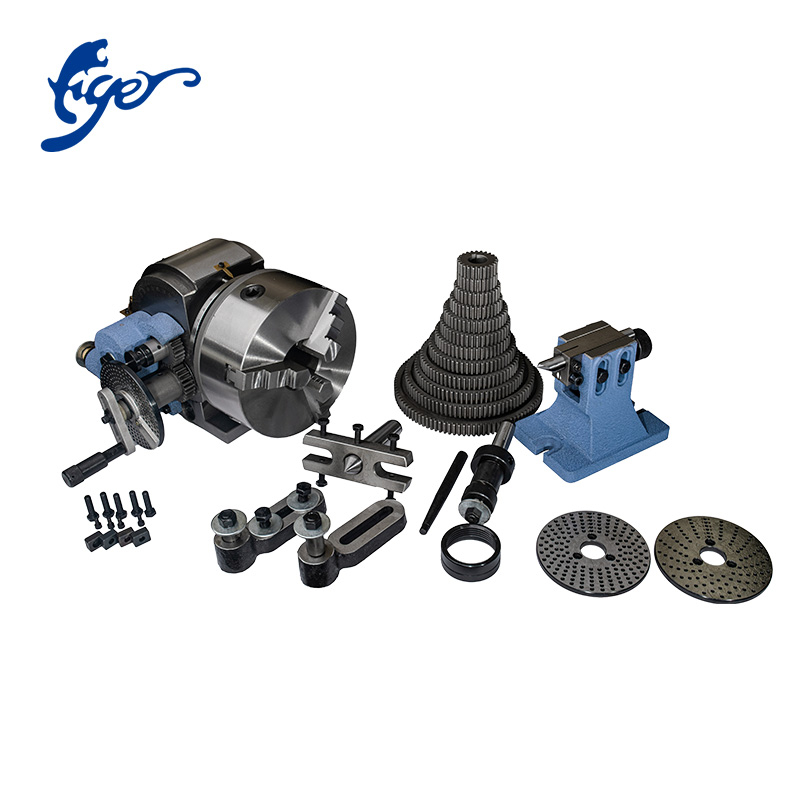

STANDARD ACCESSORIES
Dividing plate A.B.C.
Numbers of holes of dividing
(worm gear reduction ratio 1:40)
Universal Index Center B&s No.2,(head-stock)
Technical Parameter

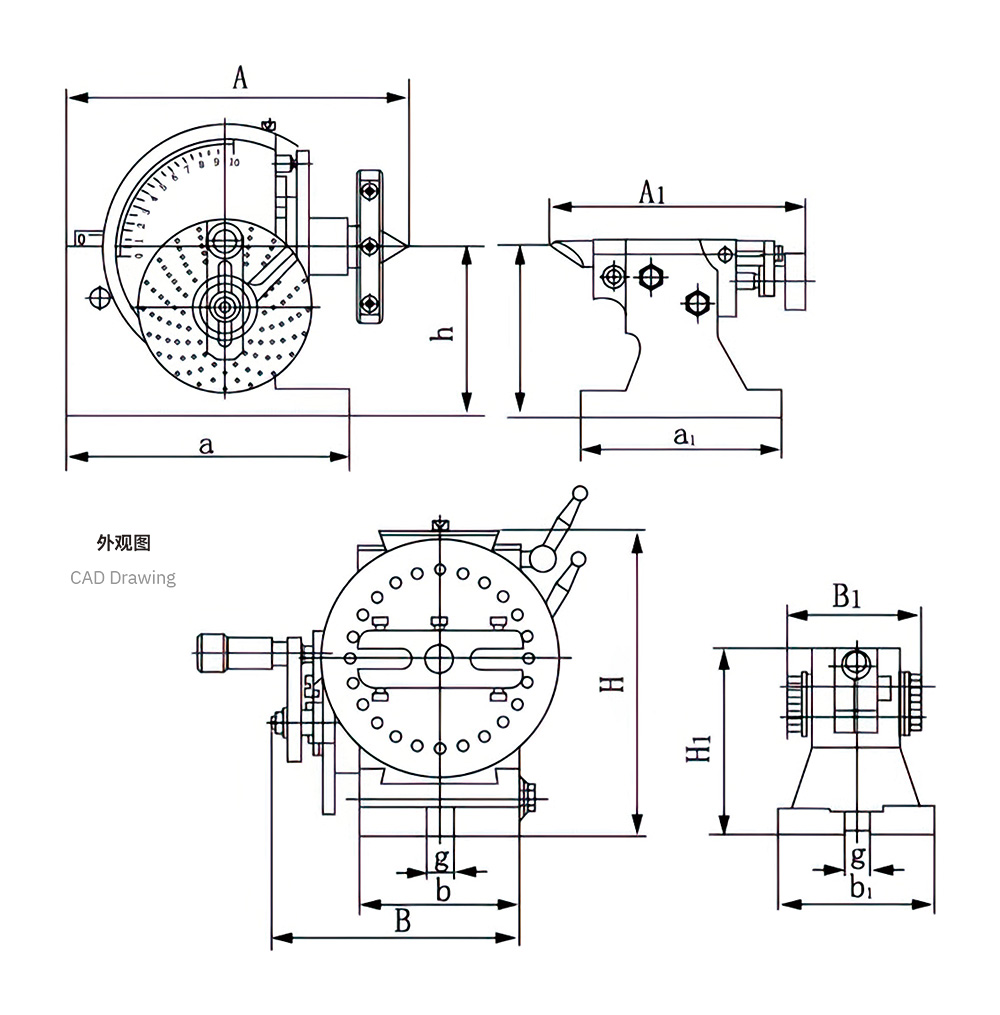

Universal Index Center B&s No.2,(head-stock) Unit:mm/in
| Model | A | B | H | h | a | b | g | Work hole taper | N.W.(kg) |
| BS-2 | 370 | 280 | 236 | 133 | 212 | 134 | 16 | MT4 | 83 |
| 14.57 | 11.02 | 9.29 | 5.24 | 8.35 | 5.28 | 0.63 | B&S NO.10 |
Universalindex Center B&s No.2,(tail-stock) Unit:mm/in
| Model | A1 | B1 | H1 | h1 | a1 | b1 | g1 | N.W.(kg) | Mueasurement m³ |
| BS/2 | 183 | 87 | 156 | 133 | 175 | 122 | 16 | Packed with the Dividing Head | |
| 7.2 | 3.42 | 6.14 | 5.24 | 6.89 | 4.8 | 0.63 | |||
| Numbers of hole | PlateA | PlateB | PlateC |
| 15 | 21 | 23 | |
| 16 | 23 | 39 | |
| 17 | 27 | 41 | |
| 18 | 29 | 47 | |
| 19 | 31 | 49 | |
| 20 | 33 | 43 |
