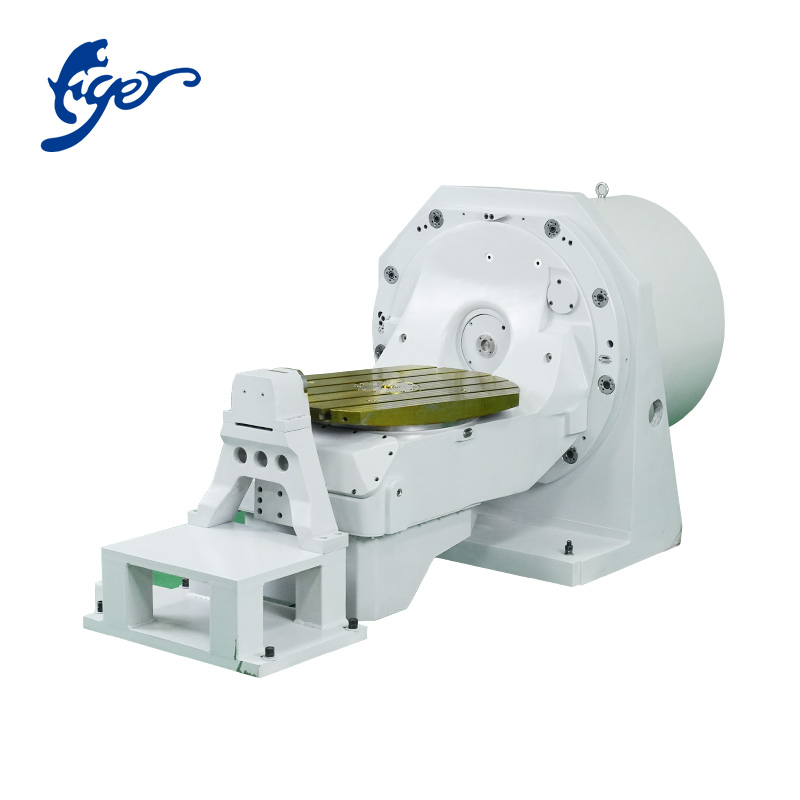

The B-axis and C-axis both utilize an anti-backlash dual gear ring mechanism, providing high transmission load capacity and smooth operation.
Suitable for heavy-duty cutting applications. Full closed-loop control ensures precision machining capability.
Can be seamlessly integrated with complete 5-axis vertical machining center solutions.

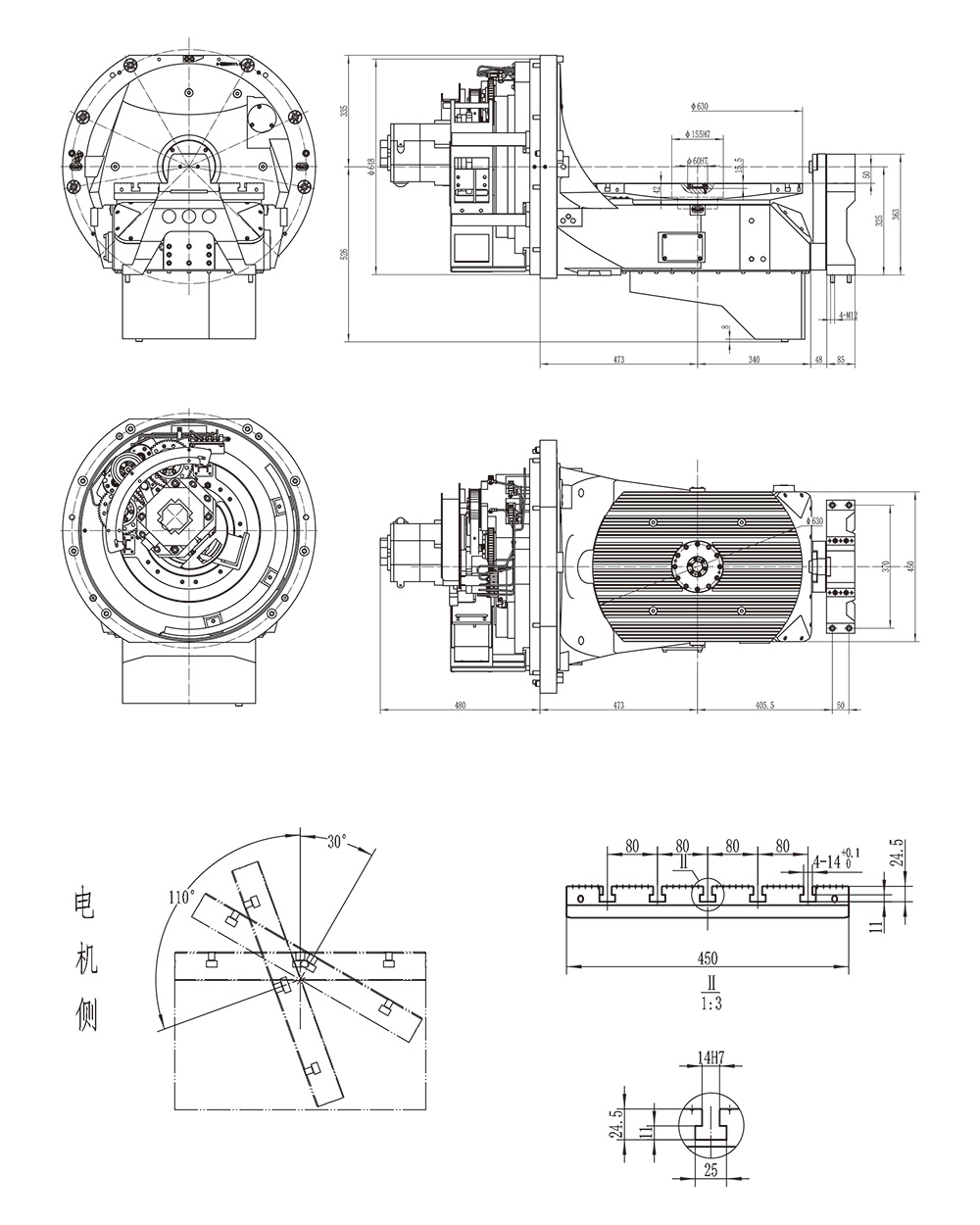

Technical Parameter
| ITEM | UNIT | DEF-5005 | ||
| Faceplate Diameter | mm | Φ630 | ||
| Center Hole Diameter of Faceplate | mm | Φ155H7X42 | ||
| Bore Diameter of Spindle Sleeve | mm | 60H7x15.5 | ||
| Height from Tilting Axis Center to Faceplate Surface | mm | 50 | ||
| T-Slot Size | mm | 5-14H7 | ||
| Angular Encoder Specification Model | A-axis | RCN2391 | ||
| C-axis | RCN2391 | |||
| Shaft | Rotation axis: 360° | Inclination axis: -30° to +110° | ||
| Minimum Setting Angle | deg. | 0.001 | 0.001 | |
| Indexing Accuracy | arc.sec. | 5” | 9” | |
| Repeatability Accuracy | arc.sec. | 2” | 2” | |
| Clamping Method (Operating Pressure: Hydraulic) | kg/cm2 | 6 | 6 | |
| Clamping Torque | kg-m | 600 | 930 | |
| Fanuc Servo Motor Model | StraightShaft | ais12 | a22i | |
| Reduction Ratio | 1:160 | 1:144 | ||
| Maximum Faceplate Speed | 25rpm | 25rpm | ||
| Permissible load inertia capacity (Horizontal Use) | kg.cm. sec2 | 140 | ||
| Permissible workpiece load | 0° horizontal | kg | 400 | |
| 0°-90°tilt | kg | 250 | ||
| Allowable Load with Table Clamped | F | kgf | 2200 | |
| Fxl | kgf.m | 400 | ||
| Fxl | kgf.m | 250 | ||
| Permissible cutting torque | kg.m | 200 | ||
| Table Weight(Motor Excluded) | kg | 880 | ||
