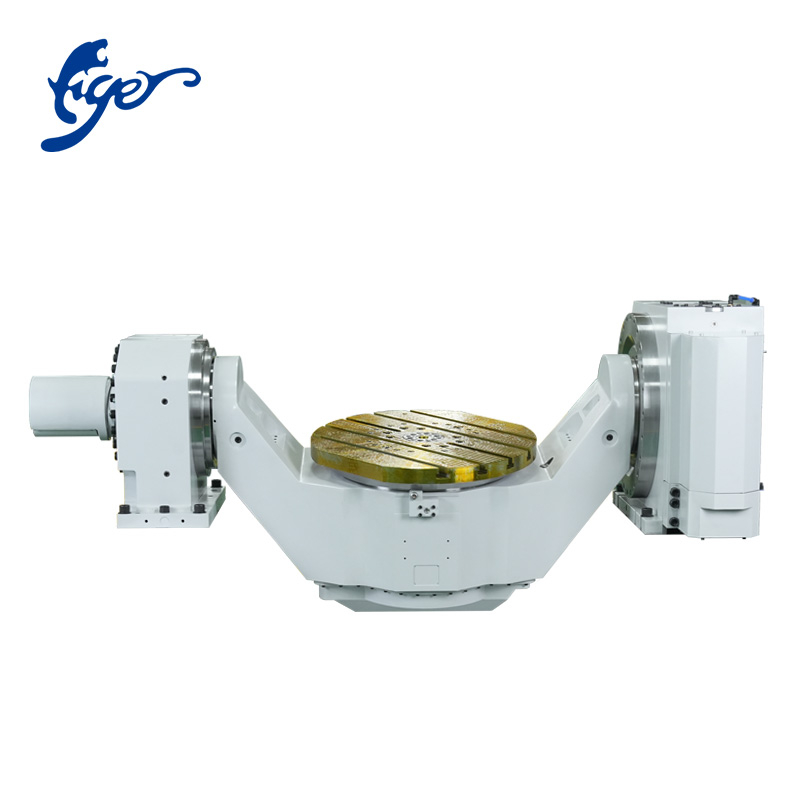

The A-axis employs a precision planetary reducer combined with a cam roller mechanism, utilizing five meshing rollers for high load capacity, smooth operation, and low noise.
The C-axis adopts a stator-rotor direct drive structure with zero backlash，ensuring high transmission accuracy.
Both A-axis and C-axis feature full closed-loop control, making them suitable for high-precision part and mold machinin

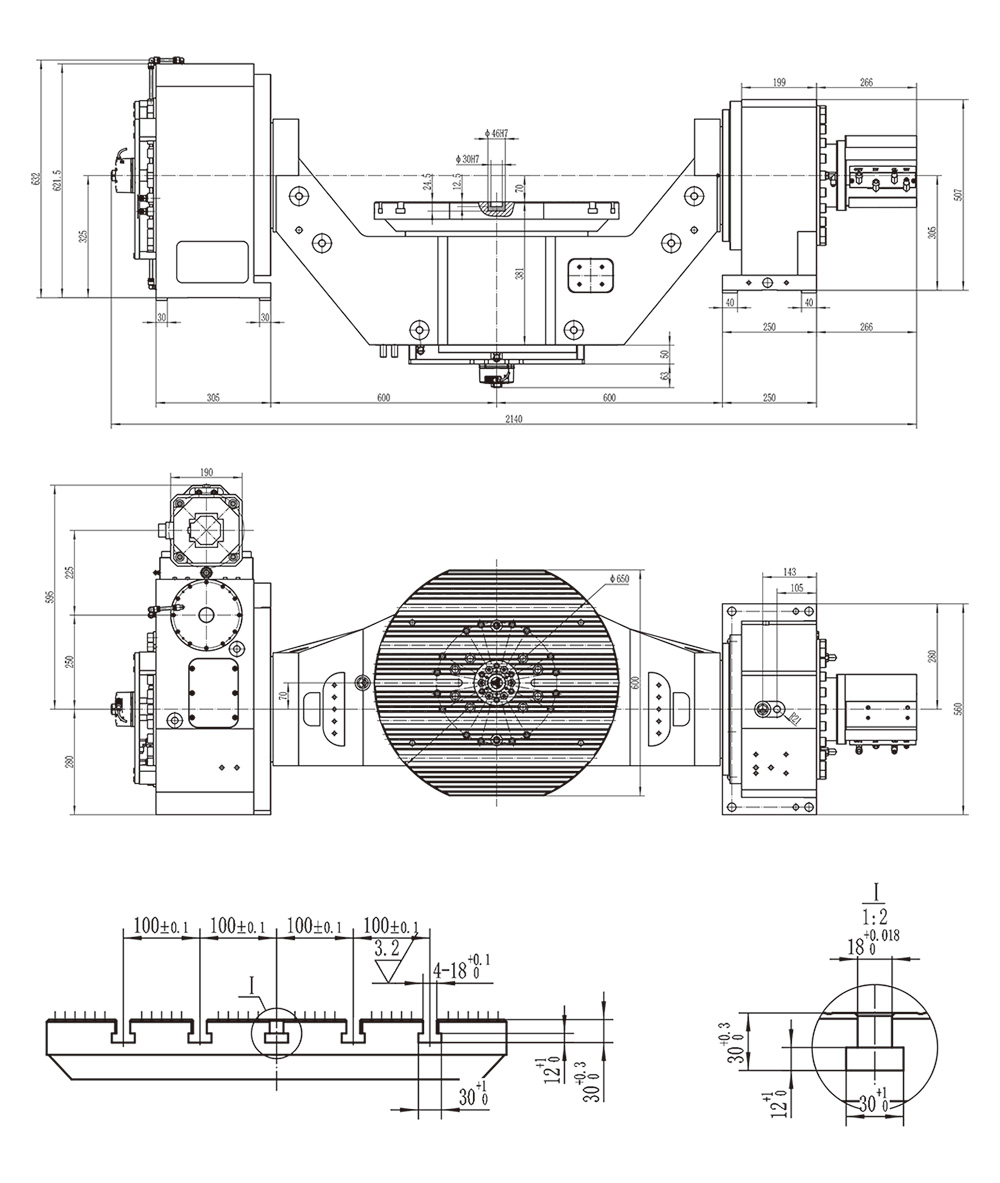

Technical Parameter
| ITEM | UNIT | DVF6500 | |
| Faceplate Diameter | mm | Φ650 | |
| Center Hole Diameter of Faceplate | mm | 30H7x12.5 | |
| Bore Diameter of Spindle Sleeve | mm | Φ46H7x24.5 | |
| Center Distance Between Rotary Axis and Tilting Axis | mm | 70 | |
| Height from Tilting Axis Center to Faceplate Surface | mm | 70 | |
| T-Slot Size | mm | 18 | |
| Width of Bottom Guide Key | mm | 18h7 | |
| Shaft | Tilt axis±120° | ||
| Minimum Setting Angle | deg. | 0.001 | 0.001 |
| Indexing Accuracy | arc.sec. | 6” | 10” |
| Repeatability Accuracy | arc.sec. | 2 | 2 |
| Clamping Method (Operating Pressure: Hydraulic) | kg/cm2 | 40 | 40 |
| Clamping Torque | kg-m | 850 | 1200 |
| Fanuc Servo Motor Model | Tapered/Straight Shaft | DiS 1300-300-385HV-B | a is40 |
| Reduction Ratio | 1:1 | 1:150 | |
| Maximum Faceplate Speed | 50rpm | 25rpm | |
| Permissible load inertia capacity (Horizontal Use) | kg.cm. sec2 | 180 | |
| Permissible workpiece load 0° horizontal | kg | 600 | |
| 0°-90°tilt | kg | 450 | |
| F Allowable Load with Table Clamped | kgf | 3200 | |
| Fxl | kgf. m | 800 | |
| Fxl | kgf. m | 370 | |
| Permissible cutting torque | kg.m | 250 | |
| Table Weight (Motor Excluded) | kg | 2000 | |
