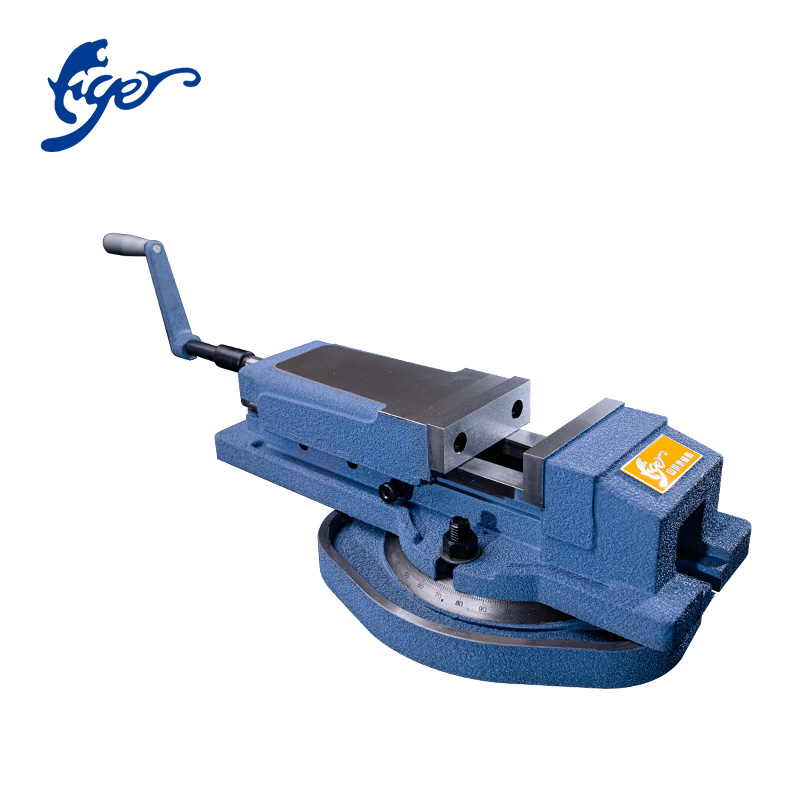

HP-4V/5V/6V/8V
TIGER
HP-4V/5V/6V/8V
◆ 3 RANGES FOR JAW OPENING
The jaw opening distance of this unit is variable across 3 ranges. Its sliding stock can be positioned and fixed with the lock pin at a location selected according to the size of the workpiece to be mounted, as per the table below. Time required for preparation and securing the workpiece is thus minimized.
Technical Parameter
| Model NO. | 3 Steps Clamping Position X | 3 Steps Clamping Position Y | 3 Steps Clamping Position Z |
| HP-4V | 0–60 | 57–115 | 110–170 |
| HP-5V | 0–72 | 70–140 | 135–220 |
| HP-6V | 0–100 | 98–200 | 195–305 |
| HP-8V | 0–100 | 98–200 | 195–305 |
Model No. | Jaw Width (A) | Jaw Depth (a) | Jaw Opening (C) | D | E | F | G | H | I | J | K | L | Clamping Force | Weight Plain | Weight W/swivel Base |
| HP-4V | 100 | 36 | 170 | 525 | 430 | 130 | 160 | 94 | 60 | 78 | 100 | 155 | 2600kgs | 16kgs | 22kgs |
| 4" | 1.42" | 6.7" | 5720lbs | 36lbs | 48.5lbs | ||||||||||
| HP-5V | 125 | 46 | 220 | 670 | 540 | 165 | 185 | 118 | 72 | 97 | 117 | 185 | 3500kgs | 32kgs | 42kgs |
| 5" | 1.81" | 8.66" | 7700lbs | 70.4lbs | 92.4lbs | ||||||||||
| HP-6V | 155 | 53.6 | 305 | 960 | 615 | 202 | 232 | 136 | 82 | 115 | 125 | 255 | 4600kgs | 58kgs | 75kgs |
| 6" | 2.10" | 12" | 10120lbs | 128lbs | 165lbs | ||||||||||
| HP-8V | 200 | 62 | 305 | 1020 | 700 | 240 | 280 | 162 | 100 | 160 | 165 | 266 | 7200kgs | 96kgs | 125kgs |
| 8" | 2.44" | 12" | 15840lbs | 212lbs | 275lbs |
