● OTT worm drive for high transmission accuracy and excellent rigidity.
● Hydraulic clamping for secure and stable locking.
● Arbitrary indexing capability for synchronized machining operations.
Technical Parameter

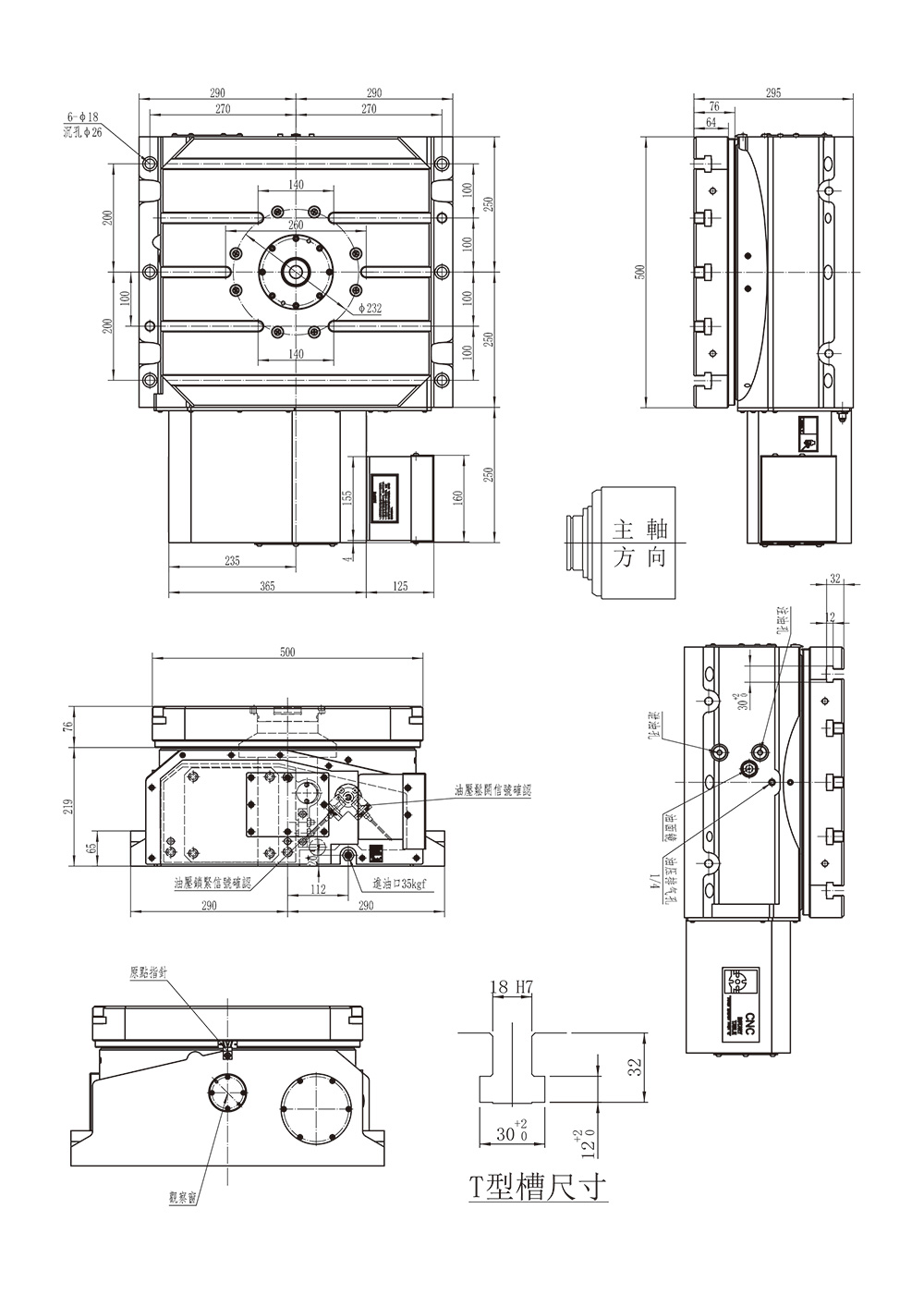

| ITEM | UNIT | HRT-500ZT |
| Pallet Dimension | mm | 500×500 |
| Spindle Hole Diameter | mm | Ø50H7 |
| Overall Height | mm | 295 |
| Servo Motor - Fanuc | — | αiF12 |
| Servo Motor - Siemens | — | 1FK7083 |
| Servo Motor - Meldas | — | HF-204S |
| Speed Reduction Ratio | — | 0.104166667 |
| Minimum Indexing | deg. | 0.001° |
| Max Speed of Pallet Top | — | 22.2 |
| Indexing Accuracy | arcsec | 15 |
| Repeatability Accuracy | arcsec | 6 |
| Clamping Torque | kgf-m² | 270 |
| Suitable Enviroment Temperature | ℃ | 18°~40° |
| Permissible Cutting Force | kgf-m² | 190 |
| Max. Load | kg | 1000 |
| Net weight | kg | 370 |
