Double-lead worm gear facilitates easy adjustment.
Hydraulic clamping for secure locking.
Curvic coupling positioning with high accuracy of 1° per minute.
Bidirectional electronic control for reliable operation.
Technical Parameter

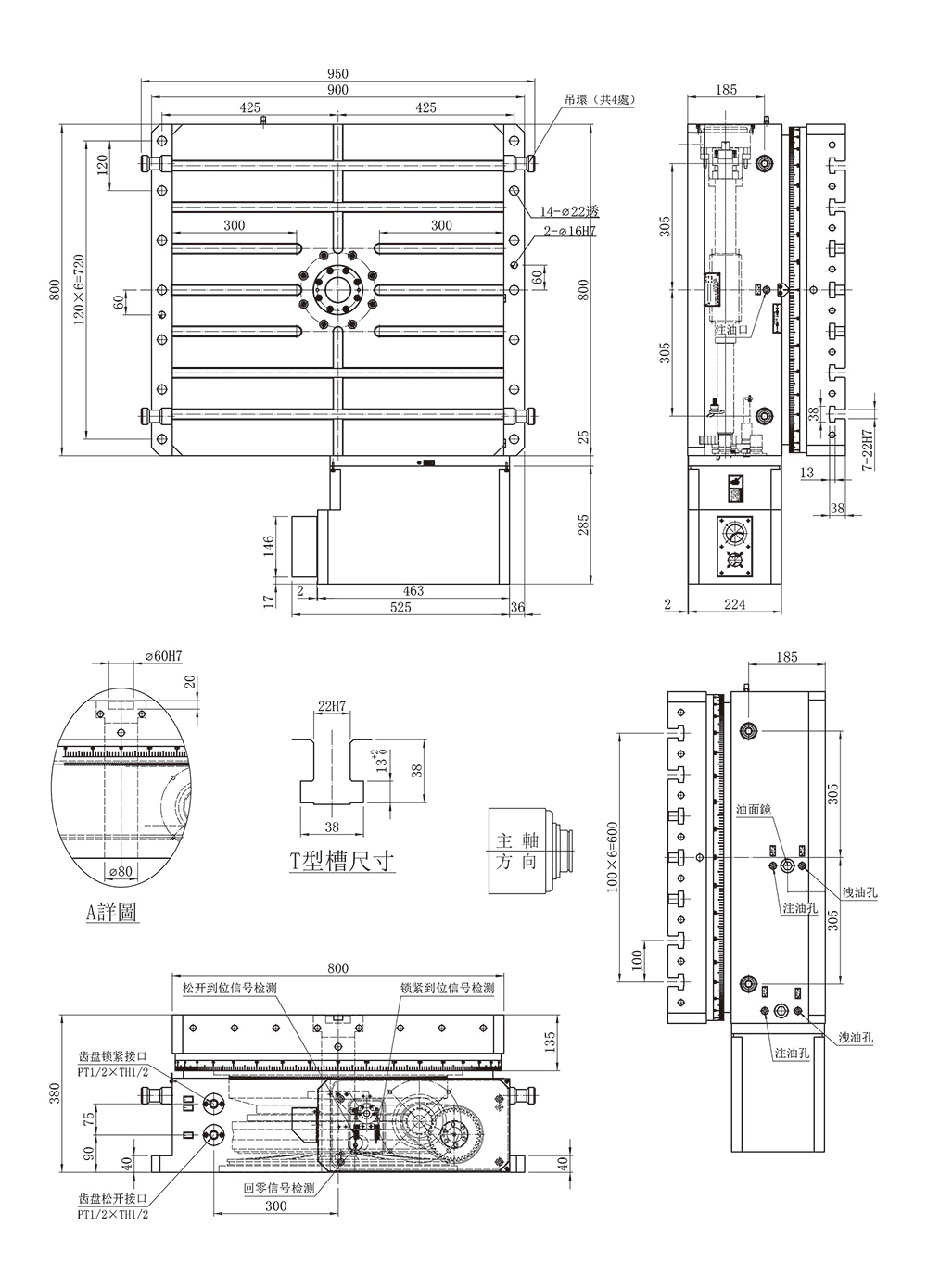

| ITEM | UNIT | HRT-800 | |
| Pallet Dimension | mm | 800×800 | |
| Spindle Hole Diameter | mm | Ø60H7 | |
| Overall Height | mm | 380 | |
| Servo Motor | — | αiF12 / β22is | |
| — | 1FK7084 | ||
| — | HF-303S | ||
| Speed Reduction Ratio | — | 1-180 | |
| Minimum Indexing | deg. | 1° | |
| Max Speed of Pallet Top | — | 16.66 | |
| Indexing Accuracy | arcsec | 10 | |
| Repeatability Accuracy | arcsec | 2 | |
| Clamping Torque | kgf-m² | 1820 | |
| Suitable Enviroment Temperature | ℃ | 18°~40° | |
| Permissible Cutting Force | kgf-m² | 1275 | |
| Max. Load | kg | 4000 | |
| Net weight | kg | 1050 | |
