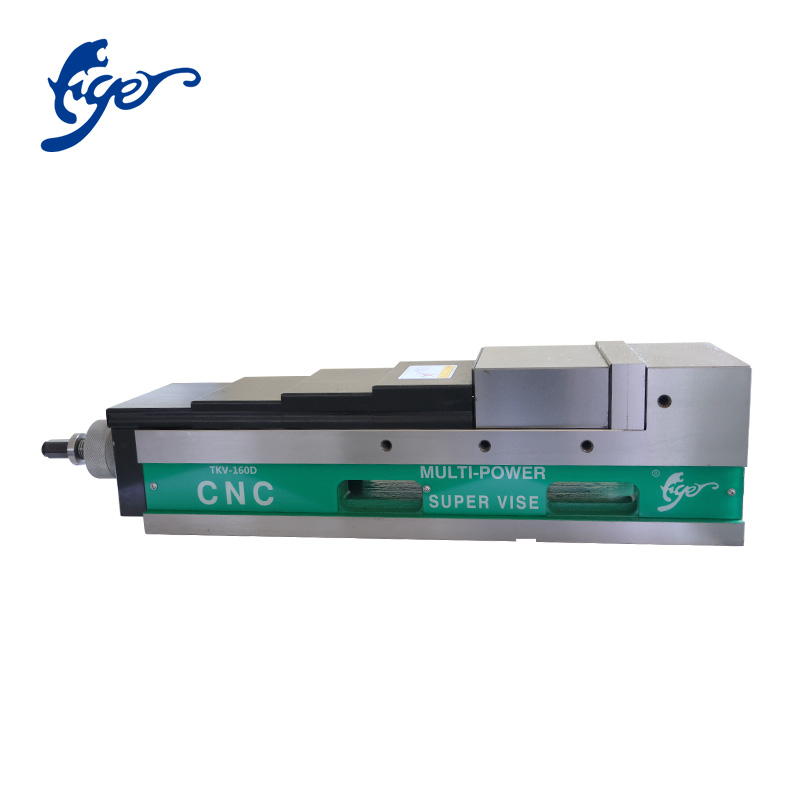

The vise is made by precision processing and grinding processes, it's suitable for vertical /horizontal machine centers to precision processing.Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC42°), ensure high precision and high wear resistance, high tensile strength.Jaw hardened heat (HRC42°).Mechanism design (patent design), with rapid pressurization and high clamping force of the unique characteristics of the pressing mechanism (highest up to 5000 kgf).The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged inside the interior and extend its lifetime.Adjusting stop ring: this simple and effective presetting device enables to preset each desired clamping force and it guarantees to repeat each clamping operation at the same clamping force.

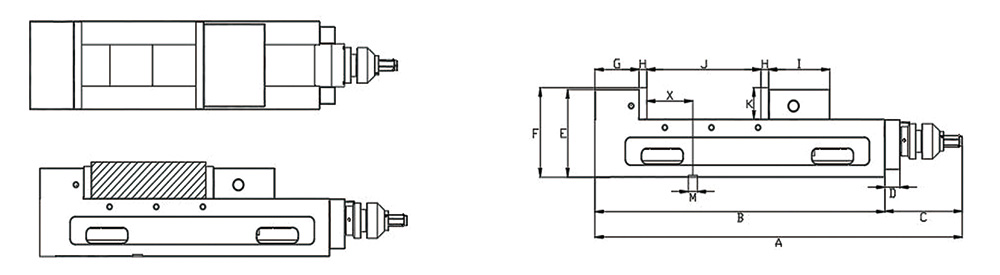

Technical Parameter
| Model | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | K | L | M | X | Clamping Force(kgf) | Net Weight(kg) | Carton Size(mm) |
| TKV-100D | 491 | 340 | 151 | 29 | 130 | 133 | 65 | 15 | 88 | 0-140 | 48-18 | 65 | 65 | 18 | 65 | 18 | 45 | 4500 | 30 | 570x150x185 |
| TKV-130D | 566 | 415 | 151 | 29 | 147 | 160 | 75 | 15 | 105 | 0-180 | 55-18 | 55 | 89 | 18 | 55 | 18 | 45 | 4500 | 40 | 650x180x200 |
| TKV-160D | 711 | 515 | 151 | 160 | 160 | 163 | 85 | 15 | 118 | 0-300 | 58-18 | 58 | 89 | 18 | 58 | 18 | 45 | 4500 | 63 | 790x210x215 |
| TKV-200D | 761 | 610 | 151 | 29 | 187 | 190 | 100 | 18 | 115 | 0-340 | 70-18 | 70 | 70 | 18 | 70 | 18 | 70 | 5000 | 90 | 840x250x240 |
