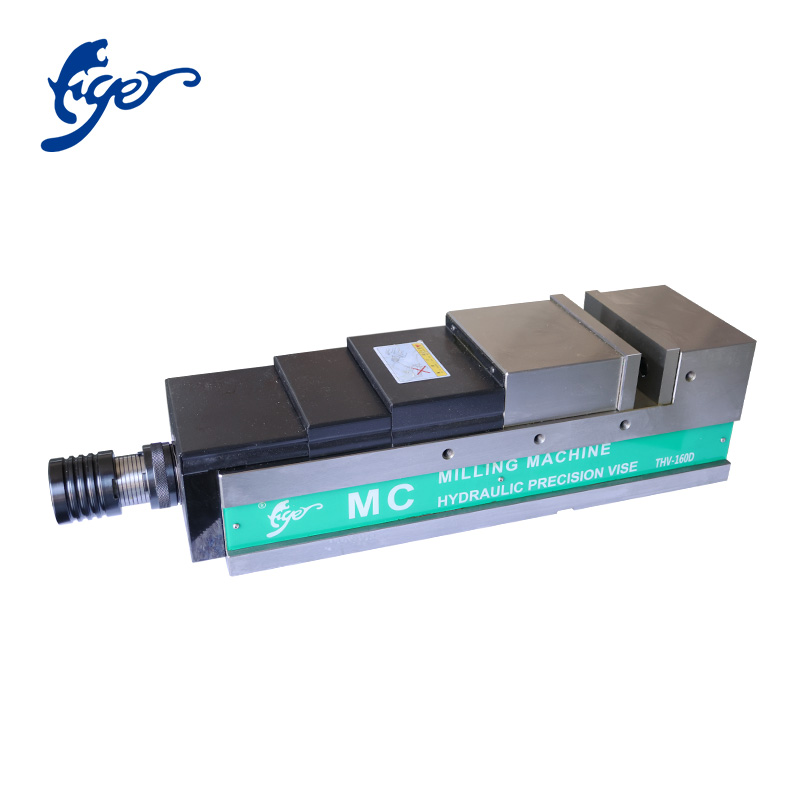

The vise is made by precision machining and grinding processes, it's suitable for vertical /horizontal machine centers to precision processing.
vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC42°), ensure high precision and high wear resistance, high tensile strength.
Jaw hardened heat treatment (HRC 42°).
Unique pressurization mechanism (patent design) with rapid pressurization and high clamping force of the unique characteristics of the pressing mechanism (highest up to 5000 kgf).
The vise with anti-litter design prevents iron filings drop into the vise, and iron filings easily discharged inside the interior and extend its lifetime.

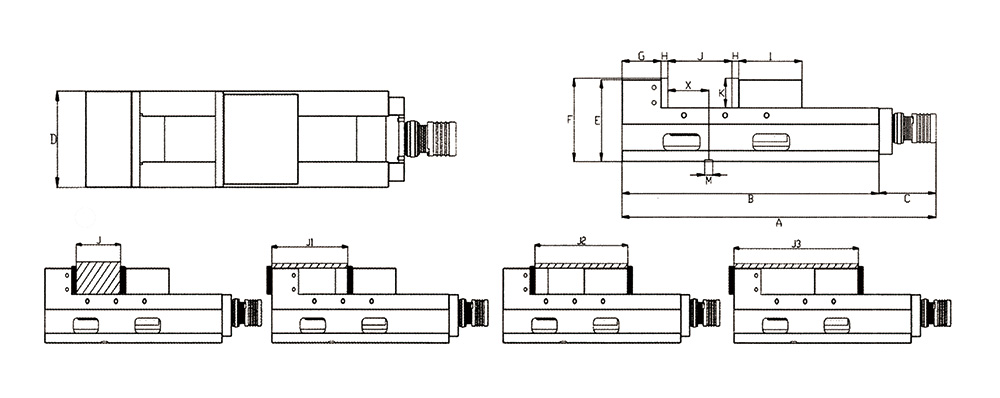

Technical Parameter
| Model | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | K | L | M | X | Clamping Force(kgf) | Net Weight(kg) | Carton Size(mm) |
| THV-100D | 475 | 340 | 135 | 102 | 130 | 133 | 65 | 15 | 110 | 0-130 | 65-210 | 110-240 | 175-305 | 48 | 16 | 45 | 16 | 4000 | 26 | 530x150x185 |
| THV-130D | 550 | 430 | 140 | 157 | 160 | 163 | 75 | 15 | 138 | 0-240 | 75-270 | 138-358 | 213-393 | 55 | 18 | 65 | 18 | 4500 | 38 | 600x180x215 |
| THV-160D | 650 | 515 | 135 | 160 | 160 | 163 | 85 | 15 | 138 | 0-240 | 85-320 | 138-358 | 223-443 | 58 | 18 | 99 | 18 | 4500 | 58 | 705x210x225 |
| THV-160DL | 695 | 510 | 135 | 160 | 160 | 163 | 85 | 15 | 138 | 0-300 | 85-400 | 138-438 | 223-523 | 58 | 18 | 99 | 18 | 4500 | 61 | 750x210x215 |
| THV-200D | 745 | 610 | 135 | 200 | 187 | 190 | 100 | 19 | 130 | 0-340 | 100-458 | 130-395 | 230-570 | 70 | 18 | 70 | 18 | 5000 | 90 | 800x250x240 |
