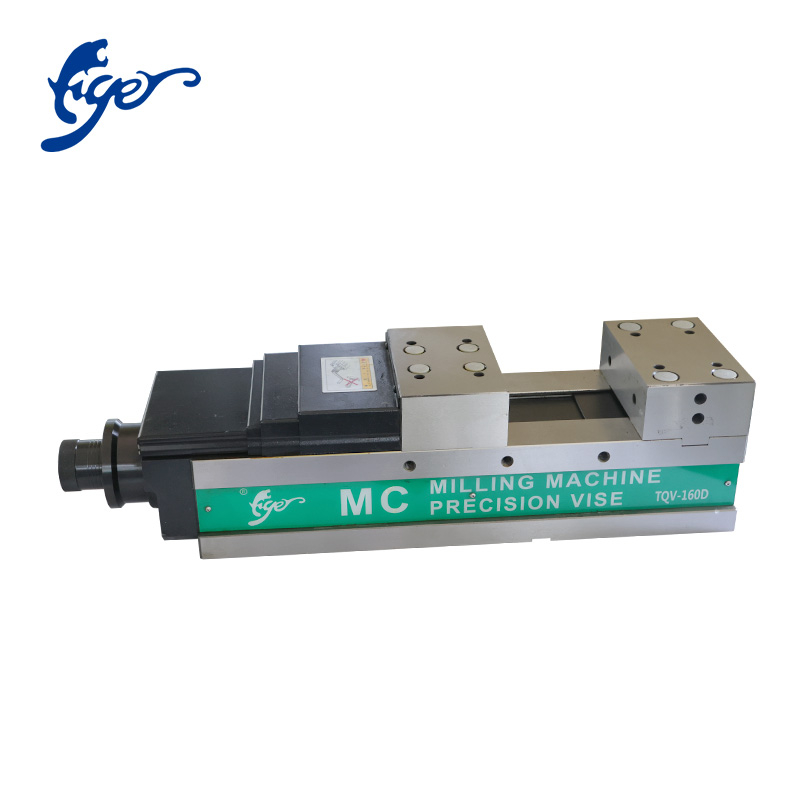

The vise is made by precision and grinding processes, it's suitable for vertical /horizontal machine centers.
Vise body material is high ductility of spherical graphite cast iron (FCD600) integral product design, vise both sides of the slide hardened heat (HRC42°), ensure high precision and high wear resistance, high tensile strength.
Fixed block and sliding are steel and heat treatment HRC 42° or more, hardness and wear resistance is high, user may add or replace the processing needs of different specifications of the jaw plate.
CNC precision vise owns special nut with structure of under the pressure, can be generated under the power of the lock, remove the clamping jaws without the need for disassembly.
Mechanism design (patent design), with rapid pressurization and high clamping force of the unique characteristics of the pressing mechanism (highest up to 5000 kgf).

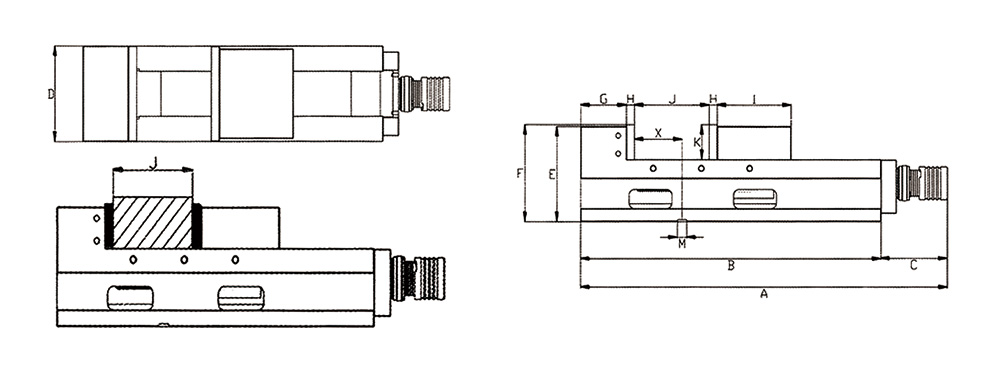

Technical Parameter
| Model | A | B | C | D | E | F | G | I | J | K | M | X | Clamping Force(kgf) | Net Weight(kg) | Carton Size(mm) |
| TQV-100D | 464 | 340 | 124 | 100 | 130 | 70 | 70 | 0-140 | 45 | 18 | 45 | 18 | 4500 | 27 | 530x150x185 |
| TQV-130D | 539 | 415 | 124 | 130 | 147 | 90 | 97 | 0-200 | 52 | 18 | 45 | 18 | 4500 | 38 | 600x180x200 |
| TQV-160D | 639 | 515 | 124 | 160 | 160 | 100 | 97 | 0-300 | 55 | 18 | 45 | 18 | 4500 | 58 | 750x210x215 |
| TQV-200D | 734 | 610 | 124 | 200 | 187 | 100 | 115 | 0-350 | 67 | 18 | 67 | 18 | 5000 | 84 | 800x250x240 |
