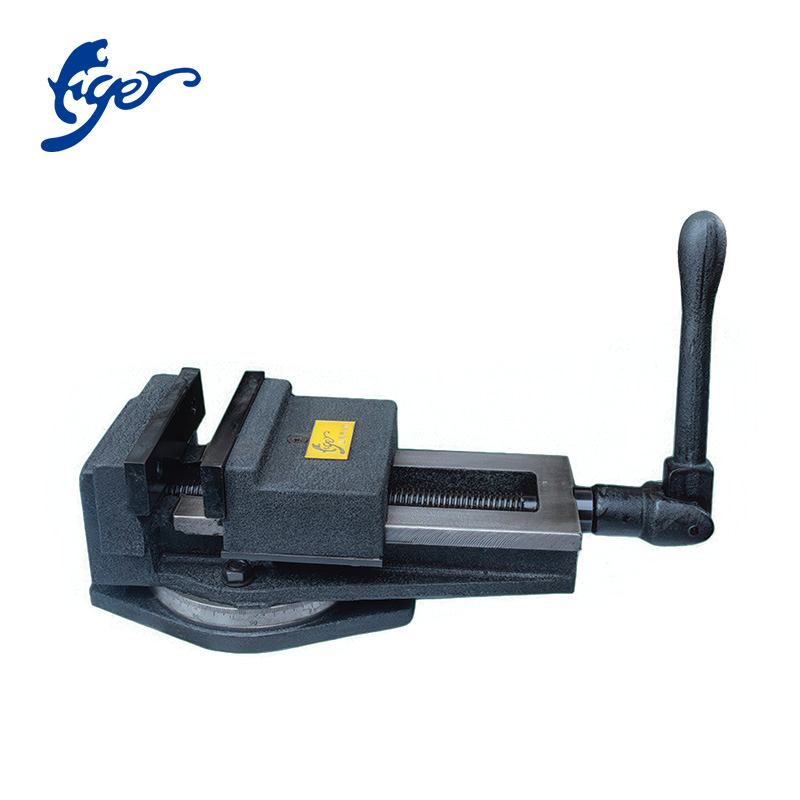

◆ It adopts high-quality cast iron.
◆ Both parallelism and verticality of the two jaws are within 0.025mm/100mm.
◆ It is widely used for the milling machine and the drilling machine to process various surfaces, slots, and holes.
Technical Parameter
| Model | Width of Jaw (mm) | Height of Jaw (mm) | Total Height (mm) | Max. Opening (mm) | G./N. Weight (kg) | QTY per Carton | Packing Size (mm) |
| Q13136 | 135 | 35 | 118 | 170 | 17/16 | 1 | 420×200×150 |
| Q13160 | 160 | 51 | 142 | 180 | 27/26 | 1 | 420×210×170 |
| Q13200 | 200 | 64 | 172 | 220 | 38/37 | 1 | 500×240×180 |
| Q13250 | 250 | 64 | 186 | 280 | 57/55 | 1 | 610×300×200 |
| Q13320 | 320 | 81 | 205 | 360 | 86/84 | 1 | 720×390×220 |
