● Teaching and Training: Primarily used in vocational colleges, university maker innovation labs, and similar settings for teaching and hands-on training in 5-axis simultaneous CNC programming. Enables students to master 5-axis machining technology through practical operation.
● Small Parts Machining: Suitable for processing small, precision 5-axis components and complex parts, such as those made of aluminum alloy, copper, plastic, and iron/mold steel for light machining. Applicable for manufacturing jewelry, craft gifts, small mechanical parts, etc.
Technical Parameter

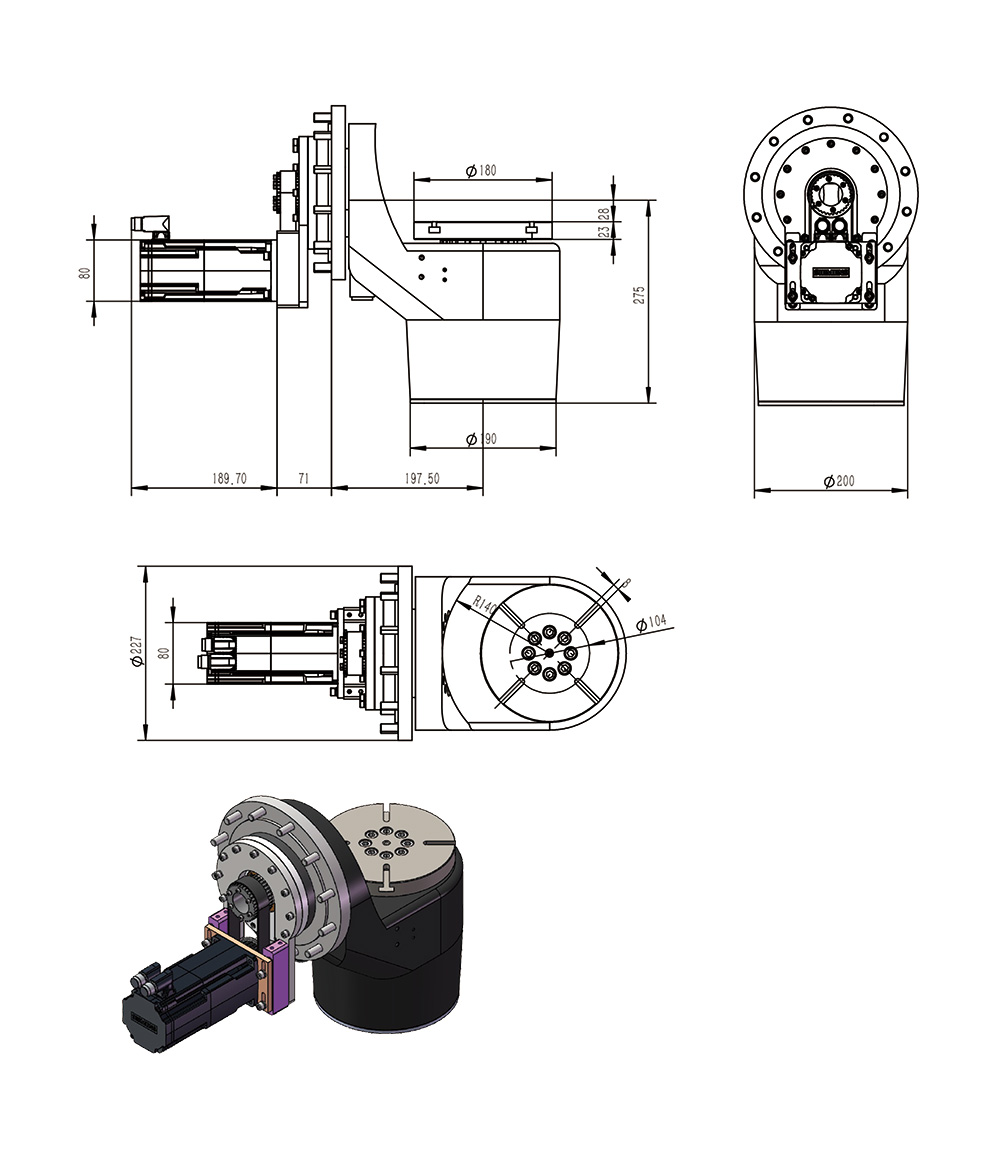

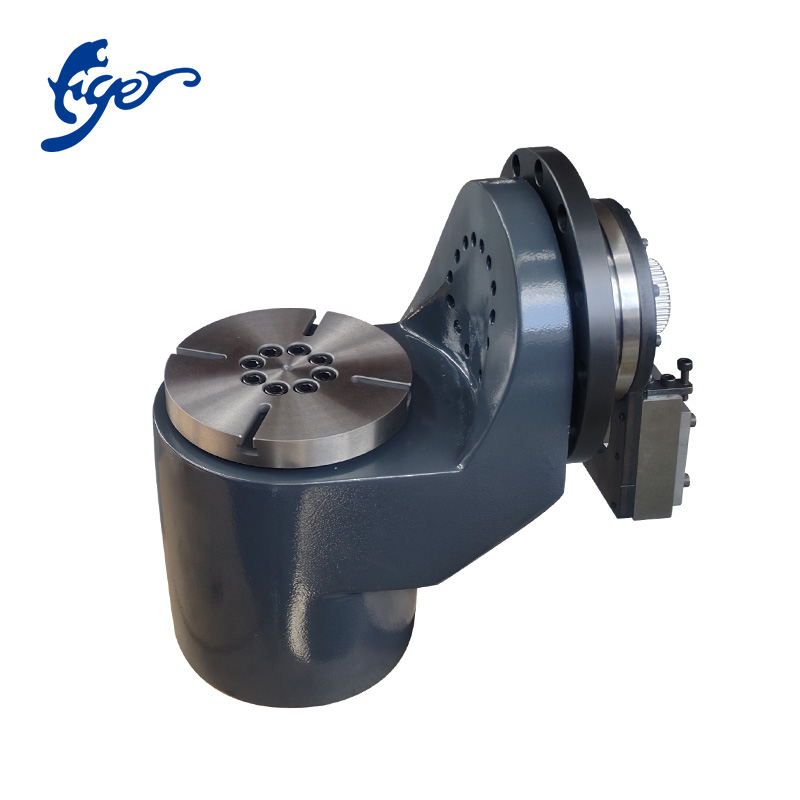

| ITEM | UNIT | Model TBC-180 Rotary Axis | ||
| Faceplate Diameter | mm | Φ180 | ||
| Center Hole Diameter of Faceplate | mm | / | ||
| Bore Diameter of Spindle Sleeve | mm | / | ||
| Through-Hole Diameter of Center Bore | mm | / | ||
| Height from Base to Faceplate Surface | mm | / | ||
| T-Slot Size | mm | 4-8H7 | ||
| Width of Bottom Guide Key | mm | / | ||
| Shaft | - | Rotary Axis | Tilting Axis ±100° | |
| Minimum Setting Angle | deg | 0.001 | 0.001 | |
| Indexing Accuracy | arc.sec | 60" | 60" | |
| Repeatability Accuracy | arc.sec | 8" | 8" | |
| Clamping Method (Operating Pressure: Pneumatic) | kg/cm² | / | / | |
| Clamping Torque | kg-m | / | / | |
| Servo Motor Model | - | 1FK2104-5AF10-1MBO | 1FK2104-5AF00-1MBO | |
| 750W with Brake | 750W with Key | |||
| Reduction Ratio | - | 1-100 | 1-100 | |
| Maximum Faceplate Speed | rpm | 1000rpm | 1000rpm | |
| Allowable Load Moment of Inertia (0° Horizontal) | kg.cm.sec² | 0.079 | ||
| Allowable Workpiece Weight (0° Horizontal) | kg | 30 | ||
| Allowable Workpiece Weight (0°~90° Tilting) | kg | 20 | ||
| Allowable Load (with Table Clamped) | F | kgf | 4.5 | |
| F×l | kgf.m | 3.4 | ||
| F×l | kgf.m | 3.4 | ||
| Allowable Cutting Torque | kgf.m | 3.6 | ||
| Table Weight (Motor Excluded) | kg | 50 | ||
