● Teaching and Training: Primarily used in vocational colleges, university maker innovation labs, and similar settings for teaching and hands-on training in 5-axis simultaneous CNC programming. Enables students to master 5-axis machining technology through practical operation.
● Small Parts Machining: Suitable for processing small, precision 5-axis components and complex parts, such as those made of aluminum alloy, copper, plastic, and iron/mold steel for light machining. Applicable for manufacturing jewelry, craft gifts, small mechanical parts, etc.

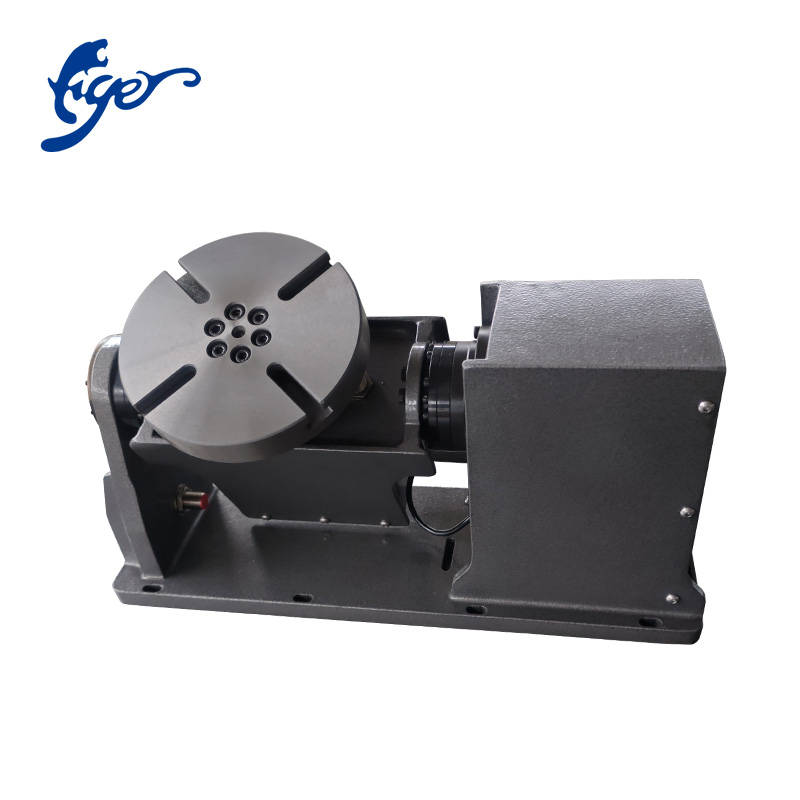

Technical Parameter
| ITEM | UNIT | Model TBK-130 Rotary Axis | Model TBK-130 Tilting Axis (±100°) |
| Faceplate Diameter | mm | Φ130 | Φ130 |
| Center Hole Diameter of Faceplate | mm | / | / |
| Bore Diameter of Spindle Sleeve | mm | / | / |
| Through-Hole Diameter of Center Bore | mm | / | / |

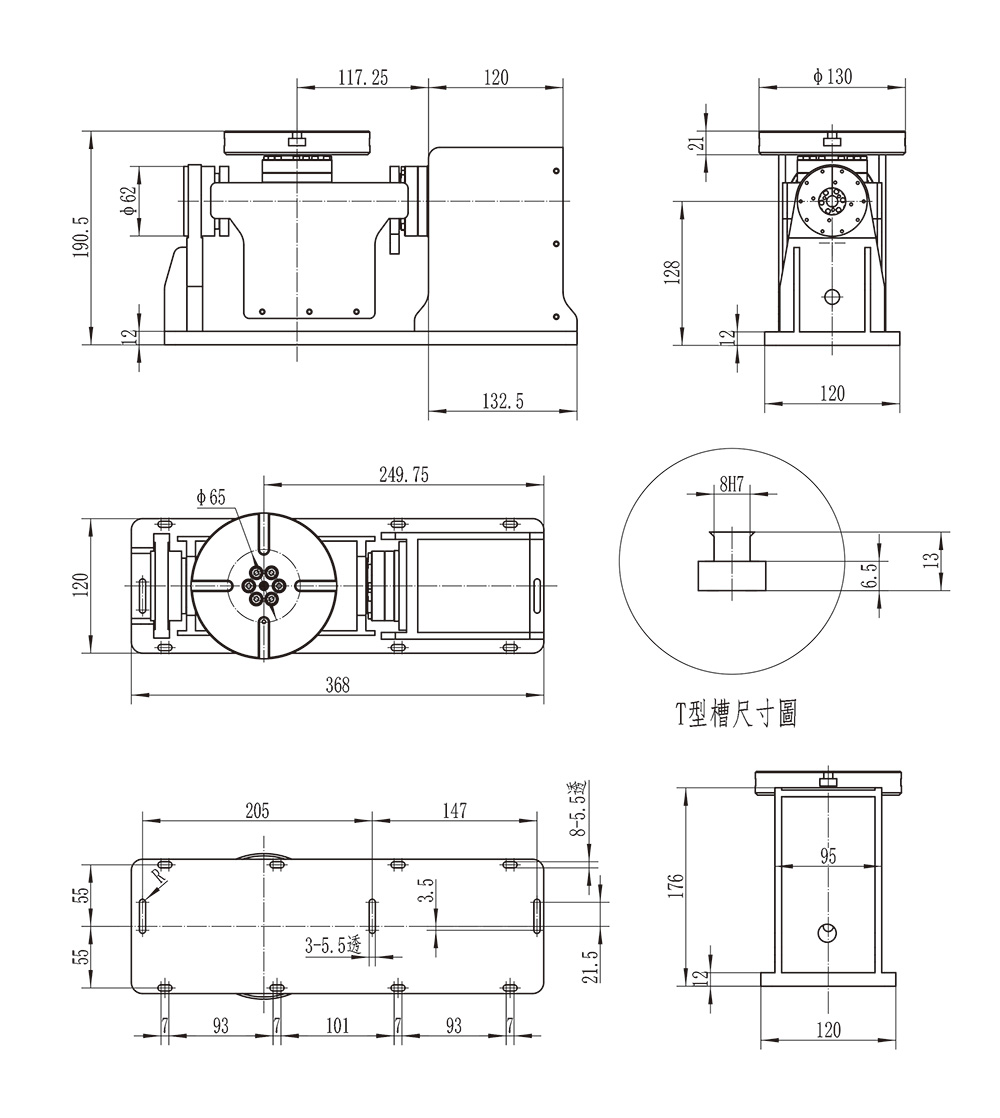

| Height from Base to Faceplate Surface | mm | 190.5 | 190.5 |
| T-Slot Size | mm | 4-8H7 | 4-8H7 |
| Width of Bottom Guide Key | mm | / | / |
| Shaft | - | Rotary Axis | Tilting Axis ±100° |
| Minimum Setting Angle | deg | 0.001 | 0.001 |
| Indexing Accuracy | arc.sec | 60" | 60" |
| Repeatability Accuracy | arc.sec | 8" | 8" |
| Clamping Method (Operating Pressure: Pneumatic) | kg/cm² | / | / |
| Clamping Torque | kg-m | / | / |
| Servo Motor Model (Yuken) | - | YK260EC65E1 | YK260EC65E1 |
| Reduction Ratio | - | 0.111111111 | 0.111111111 |
| Maximum Faceplate Speed | rpm | 500 | 500 |
| Allowable Load Moment of Inertia | kg.cm.sec² | 0.079 | 0.079 |
| Allowable Workpiece Weight (0° Horizontal) | kg | 15 | 15 |
| Allowable Workpiece Weight (0°~90° Tilting) | kg | 9 | 9 |
| Allowable Load (with Table Clamped) F | kgf | 4.5 | 4.5 |
| Allowable Load (with Table Clamped) F×l | kgf.m | 3.4 | 3.4 |
| Allowable Load (with Table Clamped) F×l | kgf.m | 3.4 | 3.4 |
| Allowable Cutting Torque | kgf.m | 3.6 | 3.6 |
| Table Weight (Motor Excluded) | kg | 15 | 15 |
