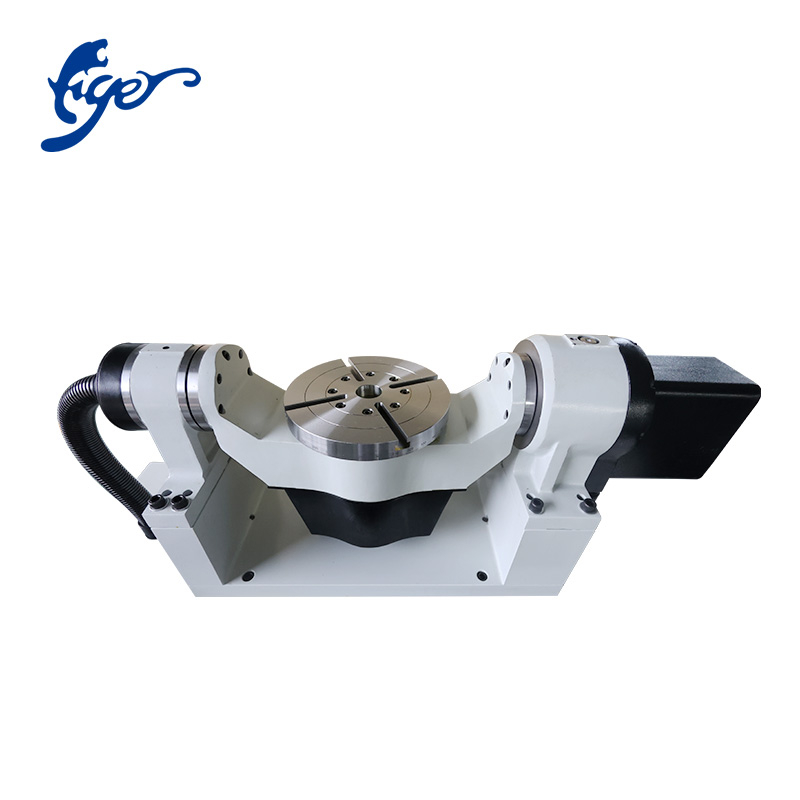

● Five-sided machining: A/C axis combination enables five-sided machining in one setup, eliminating repositioning errors;
● Compact design: Harmonic drive structure, ideal for light-duty machining;
● Maintenance-free: No regular oil changes required, reducing downtime and operating costs;
● High protection: Fully sealed design, resistant to oil and corrosion, suitable for harsh environments.

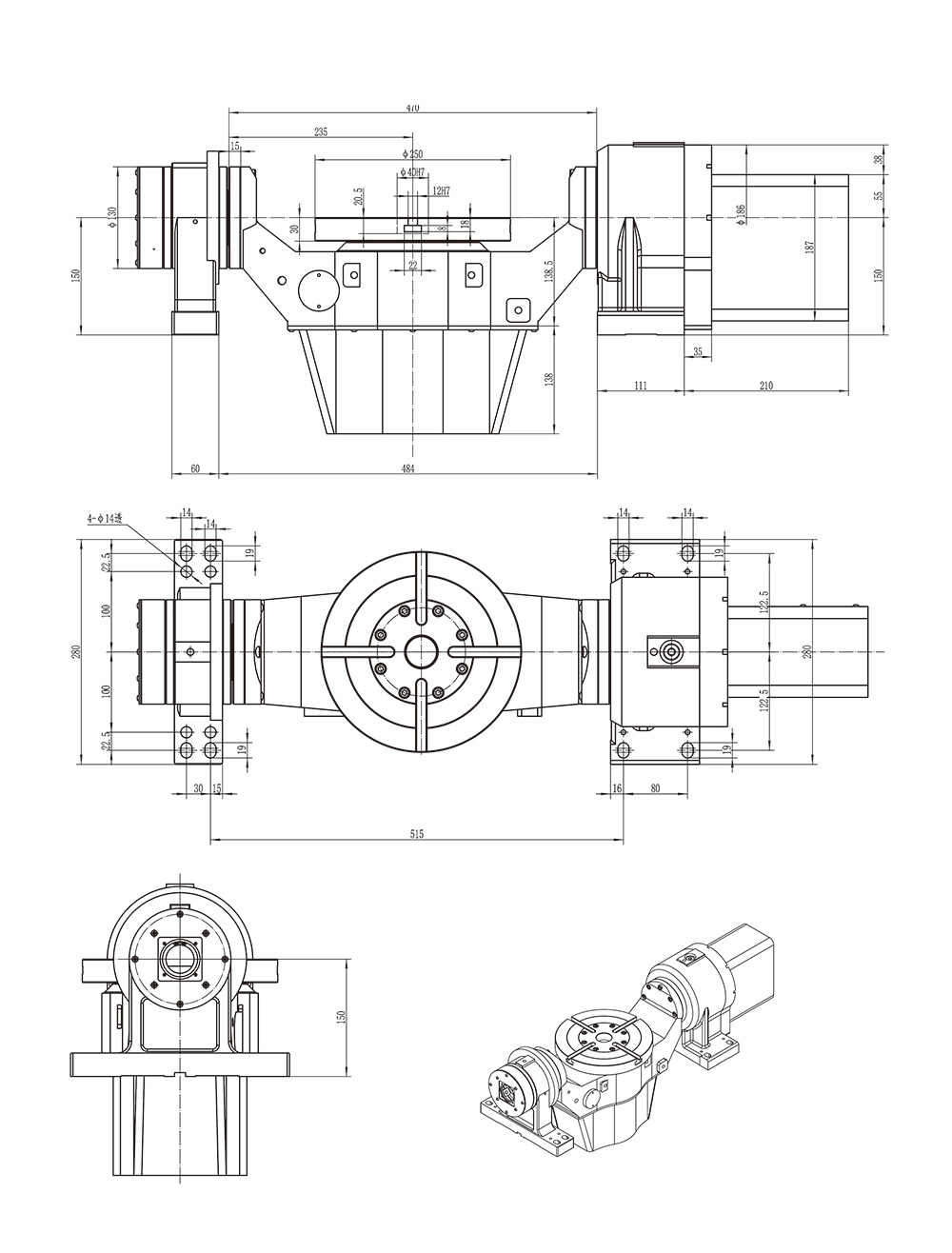

Technical Parameter
| ITEM | UNIT | Model TR250-400 | |
| Table diameter | mm | φ250 | |
| Table center hole diameter | mm | φ40×20 | |
| Height from base to table surface | mm | 150 | |
| T-slot size | mm | 4-12H7 | |
| Base guide key width | mm | 14h7 | |
| Axis | - | Rotating axis | Tilt axis ±110° |
| Min. indexing angle | deg | 0.001 | 0.001 |
| Indexing accuracy | arc. sec. | 60" | 60" |
| Repeatability | arc. sec. | 8" | 8" |
| Servo motor model (FANUC) | - | α iF4/β is8 | α iF8 |
| Servo motor model (Mitsubishi) | - | HG/HF-104 | HG/HF-104 |
| Reduction ratio | - | 1-100 | 1-100 |
| Max. table speed | rpm | 30 | 30 |
| Allowable load moment of inertia | kg.cm.sec² | 8.13 | |
| Allowable workpiece load (0° Horizontal) | kg | 60 | |
| Allowable workpiece load (0°~90° Tilt) | kg | 35 | |
| Allowable load F | kgf | 600 | |
| Allowable load F×l | kgf.m | 40 | |
| Allowable load F×l | kgf.m | 25 | |
| Allowable cutting torque | kg.m | 25 | |
| Table weight (excl. motor) | kg | 70 | |
