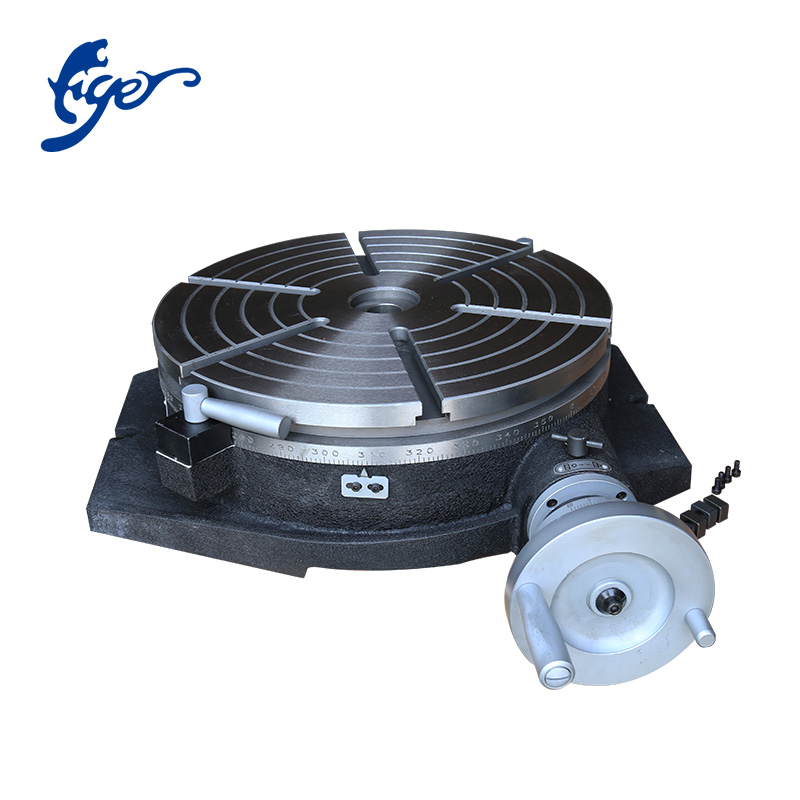

Rotary table is one of the most important accessary of milling machine. lt is widely used for index boring,miligcircle cutting.circle curve plane and segment etc operation.
As a option,different table supply different flange,flange will be packed separately, otherwise,dividing plates which provides from the option can indexing all of the integer between 2 and 66 also can indexing the numbers between 67 and 132 can be divided exactly by numbr 2、3 and 5.
Technical Parameter
| ITEM | TS 150A | TS 200A | TS 250A | TS 320A | TS 400A | TS 500A | TS 630A | TS 800A | TS 1000A | TS 1250 | TS 1600 |
| Table Diameter (mm) | Φ150 | Φ200 | Φ250 | Φ320 | Φ400 | Φ500 | Φ630 | Φ800 | Φ1000 | Φ1250 | Φ1600 |
| Morse taper of the center hole | 2# | 3# | 3# | 4# | 4# | 5# | 5# | 6# | 6# | 6# | 6# |
| Width of T-slot (mm) | 14 | 14 | 14 | 14 | 16 | 18 | 18 | 22 | 22 | 22 | 22 |
| Adjacent angle of T-slot | 90° | 90° | 60° | 60° | 60° | 45° | 45° | 45° | 45° | 45° | 45° |
| Width of the locking key (mm) | 16 | 16 | 14 | 14 | 18 | 22 | 22 | 22 | 22 | 22 | 22 |
| Modules of worm and worm gear | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Min. value of vernier | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" |
| Indexing accuracy | 60" | 60" | 60" | 60" | 60" | 60" | 60" | 60" | 60" | 60" | 60" |
| Max. workload (kg) | 50 | 80 | 100 | 200 | 250 | 300 | 500 | 1200 | 2000 | 3000 | 6000 |
| Net weight (kg) | 12 | 23.5 | 33.5 | 65 | 125 | 215 | 345 | 800 | 1300 | 1580 | 2500 |
| Gross weight (kg) | 12.5 | 24.5 | 44.5 | 76 | 145 | 238 | 377 | 855 | 1400 | 1700 | 2700 |
| Overall dimensions L (mm) | 305 | 427 | 500 | 580 | 750 | 850 | 800 | 1080 | 1270 | 1480 | 2100 |
| Overall dimensions W (mm) | 260 | 387 | 400 | 480 | 616 | 730 | 800 | 1000 | 1220 | 1430 | 2100 |
| Overall dimensions H (mm) | 160 | 180 | 210 | 238 | 280 | 302 | 340 | 420 | 400 | 460 | 500 |

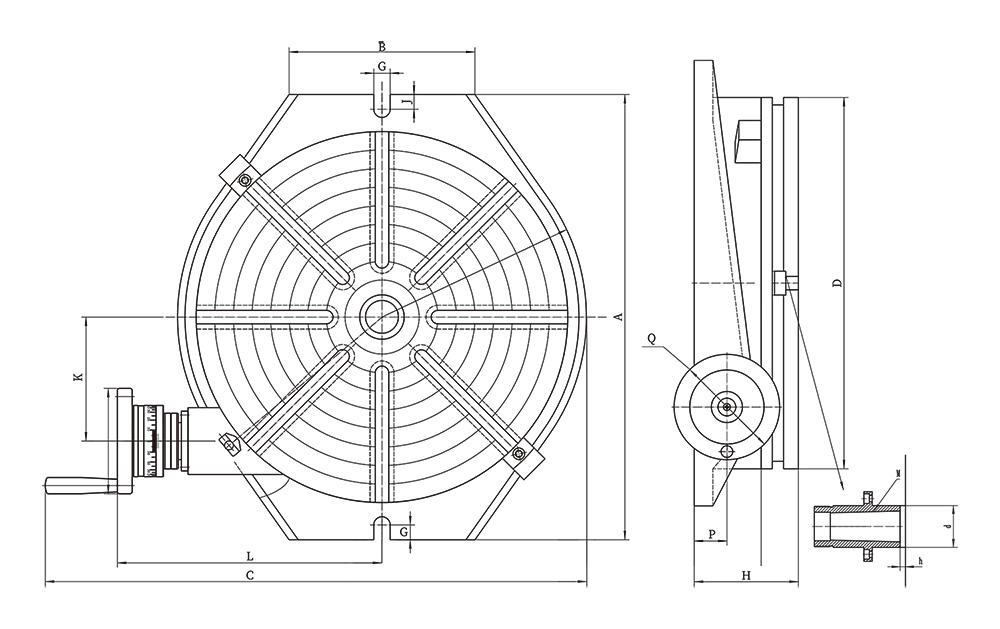

| Dimension Symbol | TS 150A | TS 200A | TS 250A | TS 320A | TS 400A | TS 500A | TS 630A | TS 800A | TS 1000A | TS 1250A | TS 1600A |
| A | 213 | 280 | 330 | 420 | 500 | 610 | 750 | 1000 | 1170 | 1400 | 1705 |
| B | 186 | 238 | 280 | 360 | 450 | 560 | 680 | 740 | 1080 | 1300 | 1664 |
| C | 260 | 390 | 415 | 480 | 640 | 680 | 898 | 1090 | 1235 | 1450 | 1670 |
| D | Φ150 | Φ200 | Φ250 | Φ320 | Φ400 | Φ500 | Φ630 | Φ800 | Φ1000 | Φ1250 | Φ1600 |
| G | 16 | 16 | 14 | 14 | 18 | 22 | 22 | 22 | 22 | 22 | 22 |
| H | 86 | 105 | 100 | 125 | 140 | 140 | 160 | 215 | 250 | 290 | 320 |
| J | 12 | 14 | 14 | 18 | 18 | 22 | 22 | 30 | 30 | 30 | 30 |
| K | 54 | 85 | 102.5 | 128.5 | 135 | 180 | 295 | 364 | 364 | 530 | 666 |
| L | 165 | 211 | 230 | 240 | 345 | 383 | 488 | 550 | 670 | 820 | 900 |
| M | MT2 | MT3 | MT3 | MT4 | MT4 | MT5 | MT5 | MT6 | MT6 | MT6 | MT6 |
| P | 27 | 30 | 30.5 | 44 | 50 | 65 | 44 | 86 | 103 | 120 | 150 |
| Q | Φ85 | Φ115 | Φ115 | Φ115 | Φ140 | Φ140 | Φ200 | Φ250 | Φ250 | Φ250 | Φ250 |
| d | Φ36 | Φ48 | Φ50 | Φ60 | Φ60 | Φ60 | Φ60 | Φ75 | Φ75 | Φ75 | Φ75 |
| h | 5 | 5 | 5 | 5 | 10 | 10 | 5 | 14 | 14 | 14 | 14 |
