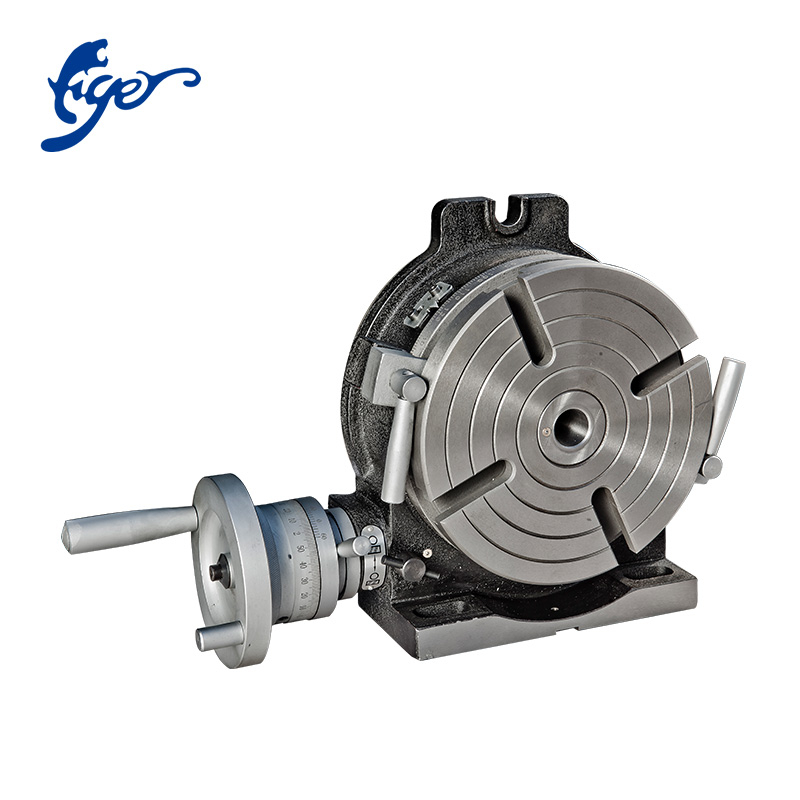

Technical Parameter
| ITEM | TSL75 HV3'' | TSL100 HV4'' | TSL125 HV5'' | TSL150 HV6 | TSL200 HV8 | TSL250 HV10 | TSL300 HV12 | TSL350 HV14 | TSL400 HV16 | TSL500 HV20 | TSL600 HV25 | TSL800 |
| Diameter of table mm | Φ76.2 | Φ110 | Φ127 | Φ150 | Φ200 | Φ250 | Φ300 | Φ350 | Φ400 | Φ500 | Φ630 | Φ800 |
| Morse taper of the center hole | / | MT2 | MT2 | MT2 | MT3 | MT3 | MT4 | MT4 | MT4 | MT5 | 200 | MT6 |
| Height of center for verti mounting mm | 59 | 85.5 | 90 | 100 | 135 | 165 | 195 | 230 | 260 | 310 | 400 | 500 |
| Width of T-slot mmx | 8 | 12 | 12 | 14 | 14 | 14 | 16 | 16 | 16 | 18 | 18 | 22 |
| Adjacent angle of T-slot | 90° | 120° | 120° | 90° | 90° | 60° | 60° | 60° | 60° | 45° | 45° | 45° |
| Width of the locking key mm | 12 | 12 | 12 | 16 | 16 | 16 | 16 | 16 | 16 | 22 | 22 | 22 |
| Modules of worm and worm gear | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | 2 | 2.5 | 2.5 | 4 | 5.5 |
| Transmission ratio of the worm gear | 1:36 | 1:72 | 1:72 | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 | 1:120 | 1:120 | 1:120 |
| Graduation of the table | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° | 360° |
| Rotating angle of table with one revolution of the worm | 10° | 5° | 5° | 4° | 4° | 4° | 4° | 4° | 4° | 3° | 3° | 3° |
| Min. value of vernier | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" | 10" |
| Indexing accuracy | ±120" | ±60" | ±60" | ±60" | ±60" | ±60" | ±60" | ±60" | ±60" | ±60" | ±60" | ±60" |
| Max.bearing (With table Hor.) kg | 15 | 40 | 50 | 60 | 70 | 80 | 100 | 125 | 150 | 300 | 450 | 1500 |
| Max. bearing (With table vert.) kg | 10 | 20 | 25 | 30 | 35 | 40 | 60 | 75 | 80 | 200 | 200 | 750 |

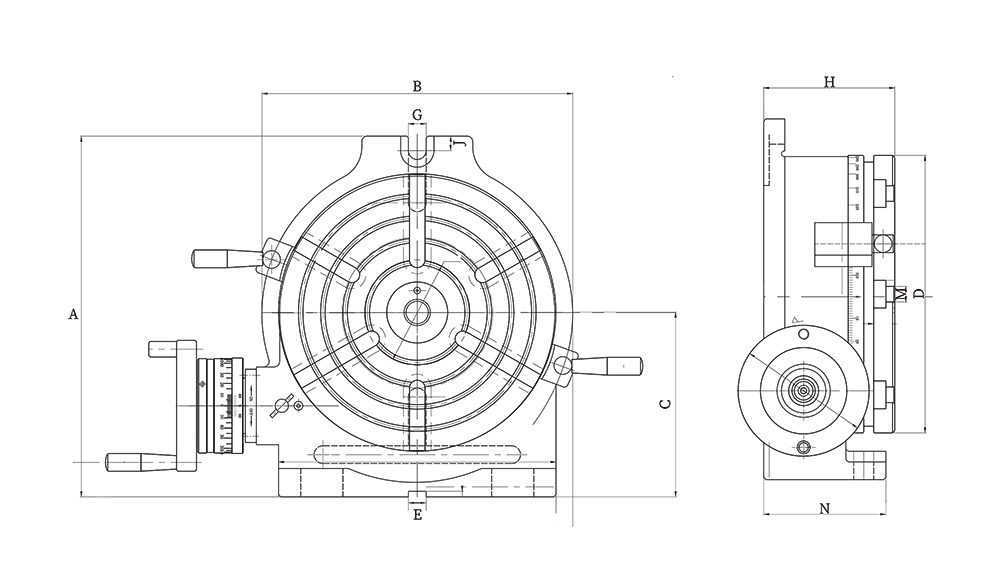

| ITEM | TSL75 (HV-3) | TSL100 (HV-4) | TSL125 (HV-5) | TSL150 (HV-6) | TSL200 (HV-8) | TSL250 (HV10) | TSL300 (HV-12) | TSL350 (HV-14) | TSL400 (HV-16) | TSL500 (HV-20) | TSL600 (HV-25) | TSL800 |
| A | 98 | 146 | 155 | 200 | 265 | 325 | 388 | 450 | 510 | 610 | 765 | 960 |
| B | 78 | 115 | 127 | 160 | 220 | 280 | 330 | 390 | 445 | 560 | 680 | 850 |
| C | 59 | 85.5 | 90 | 100 | 135 | 165 | 195 | 230 | 260 | 310 | 400 | 500 |
| D | Φ76.2 | Φ110 | Φ127 | Φ150 | Φ200 | Φ250 | Φ300 | Φ350 | Φ400 | Φ500 | Φ630 | Φ800 |
| E | 12 | 12 | 12 | 16 | 16 | 16 | 16 | 16 | 18 | 22 | 22 | 22 |
| G | / | / | / | 16 | 17 | 17 | 16 | 17 | 16 | 22 | 22 | 22 |
| H | 83 | 85 | 85 | 86 | 105 | 120 | 135 | 135 | 145 | 165 | 220 | 345 |
| J | / | / | / | 10 | 15 | 15 | 17 | 17 | 17 | 25 | 20 | 22 |
| M | / | MT2 | MT2 | MT2 | MT3 | MT3 | MT4 | MT4 | MT4 | MT5 | 200 through hole | MT6 |
| N | 68 | 68 | 68 | 78 | 98 | 110 | 128 | 130 | 130 | 160 | 220 | 295 |
| Net weight kg | 4.8 | 9 | 10 | 11 | 26 | 41 | 66 | 83 | 118 | 202 | 500 | 1200 |
| Gross weight kg | 5 | 10.5 | 10.7 | 12 | 26.5 | 42 | 73 | 85 | 128 | 225 | 550 | 1250 |
| Box Dimension Length L | 187 | 305 | 305 | 305 | 430 | 430 | 510 | 546 | 600 | 756 | 876 | 1080 |
| Box Dimension Width W | 94 | 260 | 260 | 260 | 380 | 380 | 425 | 491 | 550 | 646 | 876 | 1050 |
| Box Dimension Height H | 113 | 155 | 155 | 155 | 180 | 180 | 245 | 250 | 260 | 330 | 330 | 480 |
